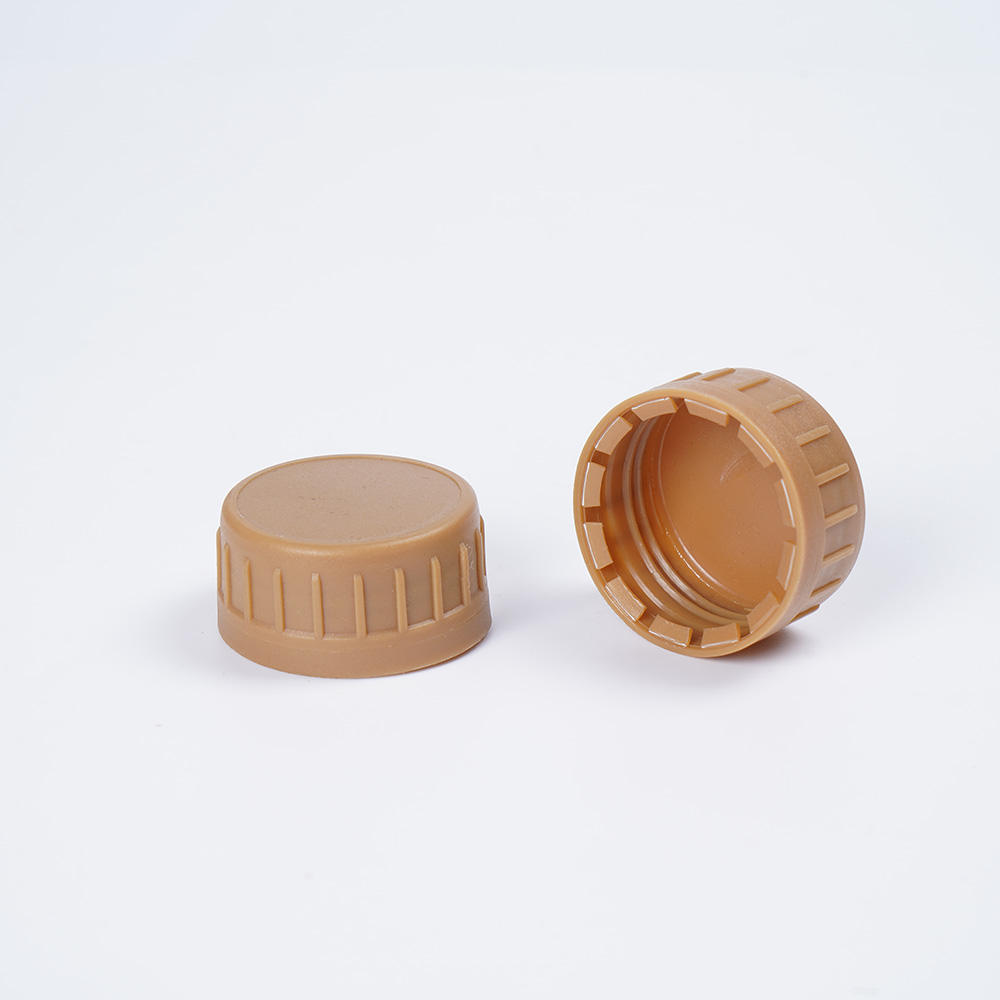

A bottle cap that cracks in use is more than a defect. It is a product failure that can lead to leakage, spoilage, customer complaints, and brand damage. The crack often appears weeks or months after the cap is manufactured, far from the production line where the root cause originated.
This phenomenon is known as environmental stress cracking. It occurs when three factors align: tensile stress in the cap material, a susceptible polymer, and a chemically aggressive environment.
At Shuanghao, we have developed comprehensive solutions for preventing cap stress cracking. By addressing material selection, mold design, and processing conditions, we produce caps that resist cracking even in demanding applications. This article reveals our approach.
Before discussing solutions, it is essential to understand what ESC is and how it occurs.
The Three Factors
ESC requires three simultaneous conditions. First, tensile stress in the cap material, either residual stress from molding or applied stress from assembly and use. Second, a polymer that is susceptible to ESC. Third, a chemical environment that acts as a stress cracking agent.
Unlike brittle fracture from impact or overload, ESC develops over time. Cracks may appear days, weeks, or months after exposure. The cap may look perfect when manufactured but fail in service.
Common ESC Agents
Different chemicals affect different polymers. For polypropylene caps, common ESC agents include surfactants in detergents and cleaning products, oils and fats in food products, disinfectants and sanitizers, some solvents and hydrocarbons, and concentrated acids or bases.
For HDPE caps, similar chemicals cause ESC, though HDPE is generally more resistant than PP.
Where ESC Occurs
ESC typically initiates at points of high stress: sharp corners at the base of threads, gate vestiges where material orientation is complex, ejector pin marks with residual stress, thin sections that cool and shrink unevenly, and weld lines where molecular orientation is disrupted.
The first line of defense against ESC is proper material selection.
Polymer Selection
Not all polypropylene grades have equal ESC resistance. Shuanghao recommends impact copolymers for ESC-prone applications, as they provide better resistance than homopolymers. High molecular weight grades offer greater resistance than low molecular weight grades. Random copolymers provide intermediate resistance.
For high-risk applications such as detergent caps or oil caps, Shuanghao recommends specialized ESC-resistant PP grades. These materials incorporate modifiers that improve chemical resistance.
Additive Packages
Additives can significantly improve ESC resistance. Nucleating agents improve crystallinity, which enhances chemical resistance. Antioxidants prevent degradation that can increase ESC susceptibility. Stress release agents reduce internal stresses.
Shuanghao works with material suppliers to specify additive packages appropriate for each application.
Material Testing
Shuanghao recommends ESC testing for new material grades. The bent strip test subjects a stressed sample to the chemical environment. Time to cracking is measured and compared to requirements. A minimum of 48 to 72 hours without cracking is typical for most applications.
Even the best material will crack if the cap contains high residual stress. Mold design significantly affects residual stress levels.
Gate Design
Gate location affects flow orientation and residual stress. Shuanghao places gates to minimize flow-induced stress. Diaphragm gates provide the most uniform flow pattern for caps. Submarine gates are suitable for smaller caps. Multiple gates may be necessary for large caps to reduce flow length.
Gate size affects shear stress. Undersized gates create high shear that degrades polymer and creates residual stress. Shuanghao calculates gate dimensions to minimize shear while maintaining fill capability.
Runner Balance
Imbalanced flow creates differential stress across cavities. Shuanghao's geometrically balanced hot runner systems ensure identical flow conditions for every cavity. This eliminates stress variations between cavities.
Cooling Design
Uneven cooling creates residual stress from differential shrinkage. Shuanghao's conformal cooling provides uniform heat extraction across the cap. Zone-specific cooling adjusts for varying wall thickness. Balanced cooling circuits prevent hot spots that create stress concentrations.
Ejection Design
Ejection forces can create significant residual stress. Shuanghao designs ejection systems for uniform force distribution. Ejector pins are placed symmetrically to avoid bending stresses. Large diameter ejectors distribute force over greater area. Air ejection provides gentle, stress-free part release.
Corner Radii
Sharp corners concentrate stress. Shuanghao specifies generous radii at all internal corners. Thread roots receive radii of 0.2 to 0.4 millimeters. Rib intersections receive radii of 0.3 to 0.5 millimeters. Gate areas receive smooth transitions to the cavity wall.
Proper processing is essential for minimizing residual stress.
Melt Temperature
Higher melt temperatures reduce residual stress but may cause material degradation. Shuanghao recommends melt temperatures at the lower end of the material supplier's range for ESC-resistant applications. Typical PP melt temperatures are 200 to 220 degrees Celsius for caps.
Mold Temperature
Higher mold temperatures reduce residual stress by allowing more uniform cooling and molecular relaxation. Shuanghao recommends mold temperatures of 30 to 50 degrees Celsius for ESC-resistant caps. Higher mold temperatures increase cycle time but improve stress performance.
Injection Speed
Moderate injection speeds reduce flow-induced stress. Shuanghao recommends injection speeds that fill the cavity in 1 to 2 seconds for typical caps. Overly fast injection creates high shear and residual stress. Overly slow injection can cause premature freeze-off and flow marks.
Packing Pressure
Lower packing pressure reduces residual stress. Shuanghao recommends the minimum packing pressure required to prevent sink marks. Packing time should be just sufficient to freeze the gate.
Cooling Time
Sufficient cooling time allows stress relaxation before ejection. Shuanghao recommends cooling times that achieve complete solidification. Premature ejection creates stress from deformation.
Annealing
For critical applications, post-mold annealing can reduce residual stress. Caps are heated to just below the melting point and slowly cooled. This allows molecular relaxation and stress reduction. Annealing adds cost but may be justified for high-risk applications.
Cap design itself affects susceptibility to ESC.
Thread Design
Thread geometry affects stress distribution. Shuanghao recommends rounded thread profiles rather than sharp profiles. Thread height should be minimized to reduce stress on the thread root. Thread pitch should be optimized for the application.
Thick-Thin Transitions
Abrupt transitions between thick and thin sections create stress concentrations. Shuanghao designs gradual transitions with generous radii. Step changes in wall thickness are avoided.
Boss and Rib Design
Bosses and ribs should be designed with radii at their bases. Rib thickness should be 50 to 70 percent of the adjacent wall. Boss outer diameter should be at least twice the inner diameter.
Gate Vestige
The gate vestige is a common stress concentration point. Shuanghao designs gates with smooth transitions to the cavity wall. Valve gates provide clean gate marks with minimal stress. Gate vestige height is minimized to reduce stress concentration.
Shuanghao recommends comprehensive ESC testing for new cap designs.
Bent Strip Test
The bent strip test is the standard ESC test method. A strip of cap material is bent to a specific strain, typically 0.5 to 2 percent. The stressed strip is immersed in the chemical environment. Time to cracking is recorded.
Shuanghao performs bent strip testing for critical applications.
Cap Immersion Test
Complete caps are assembled onto bottles with the actual chemical product. Caps are torqued to specification. Assembled units are stored at elevated temperature, typically 40 to 50 degrees Celsius. Caps are inspected regularly for cracking.
This test is more realistic than bent strip testing because it includes assembly stresses.
Stress Analysis
Finite element analysis identifies stress concentrations in the cap design. Shuanghao performs FEA to optimize designs before mold manufacturing. Maximum principal stress locations are identified and addressed.
Customer Case: Detergent Cap Manufacturer
A detergent cap manufacturer was experiencing field failures of caps cracking after several weeks in use. The caps were polypropylene, and the detergent contained surfactants known to cause ESC.
Shuanghao analyzed the existing cap design. Gate vestige stress concentration was identified as the initiation point. Residual stress from uneven cooling was a contributing factor.
Shuanghao redesigned the mold with improved gate geometry, conformal cooling for uniform temperature, and increased corner radii. The material was changed to an ESC-resistant PP grade.
Field failures were eliminated. The caps passed 90-day immersion testing with no cracking. The customer has produced over 50 million caps with no ESC-related complaints.
Customer Case: Edible Oil Cap
An edible oil producer needed caps that would not crack in contact with oil. Polypropylene has good oil resistance but can crack under stress.
Shuanghao selected a high molecular weight PP grade with ESC-resistant additives. The mold was designed with generous radii and balanced cooling. Injection parameters were optimized for low residual stress.
Caps passed 6-month oil immersion testing with no cracking. Tensile stress at the thread root was reduced by 40 percent compared to previous designs.
Shuanghao's comprehensive approach to ESC prevention includes material selection guidance for ESC-resistant polymers and additive packages. Mold design solutions incorporate generous corner radii, balanced cooling, and low-stress ejection. Processing expertise includes optimized temperatures, speeds, and pressures for minimal residual stress. Design optimization uses FEA to identify and eliminate stress concentrations. Validation testing includes bent strip, immersion, and accelerated aging.
Environmental stress cracking is not inevitable. With proper material selection, mold design, processing, and cap design, caps can withstand demanding chemical environments without cracking.
Shuanghao's comprehensive approach to ESC prevention addresses every factor that contributes to stress cracking. The result is caps that maintain their integrity throughout their service life, protecting products and brands.
Whether you produce caps for detergents, oils, foods, or industrial chemicals, Shuanghao has the expertise to prevent stress cracking.
Choose Shuanghao. Choose crack-resistant caps. Choose reliability.
