High-viscosity materials present one of the most formidable challenges in cap injection molding. Unlike their free-flowing counterparts, these polymers resist movement through the mold cavity, demanding higher pressures, slower fill speeds, and more robust tooling. Yet many demanding applications—from heavy-duty industrial closures to certain pharmaceutical caps—require precisely these materials for their superior mechanical properties and chemical resistance.
At Shuanghao, we have developed specialized engineering approaches to successfully mold high-viscosity materials without compromising cap quality or production efficiency. This article explores our comprehensive solutions.
Viscosity fundamentally determines how easily molten plastic fills a mold cavity. High-viscosity polymers flow more slowly, which can lead to longer filling times, incomplete filling, and increased cycle times. As one analysis of molding cycle factors explains, "A plastic with high viscosity, like some types of ABS, flows more slowly through the mold. This slow flow can cause longer filling times, which in turn increase the molding cycle."
The challenge is particularly acute in cap molding, where thin sections—threads, sealing surfaces, and tamper-evident bands—must be filled completely before the material begins to solidify. High viscosity materials are more prone to freeze-off before reaching these critical areas.
The flow behavior of high-viscosity materials is quantified by melt index (MI2), a measure of how easily the polymer flows under standardized conditions. Lower melt index values indicate higher viscosity. For high-viscosity cap molding applications, materials typically have MI2 values below 15 g/10 min, compared to high-flow grades that may exceed 25 g/10 min.
As noted in a polymer patent for cap applications, "the higher the flow rate of the polymer melt, the greater the speed at which it can be injected into the mould and the shorter the processing time, which improves productivity." However, high-viscosity materials are selected precisely because they provide properties that cannot be achieved with high-flow grades.
Recent innovations in polymer chemistry have produced bimodal polyethylene compositions that offer an improved balance of flowability and mechanical properties. These materials combine low and high molecular weight fractions to achieve both good processability and superior environmental stress crack resistance (ESCR).
For example, one patent describes a polyethylene composition "having a density of 949-955 kg/m³ and a melt index MI2 between 15 and 40 g/10 min," comprising a low molecular weight fraction and a high molecular weight fraction. These materials maintain good stiffness while providing improved flow characteristics compared to conventional high-viscosity grades.
Materials with poor flowability require larger gates to reduce resistance and allow adequate filling. A gate too small for high-viscosity material will create excessive back pressure, increasing the risk of short shots and material degradation from shear heating.
The gate location must also be carefully chosen. As one mold design analysis notes, materials with higher viscosity "need a larger gate or a gate placed closer to the thicker sections of the bottle cap" to ensure proper filling and prevent defects such as short shots or uneven wall thickness. For large caps, multiple gates may be necessary to ensure uniform filling.
Shuanghao's hot runner systems are engineered with flow channel diameters optimized for the specific material being processed, ensuring consistent filling across all cavities even with high-viscosity polymers.
The runner system must provide adequate flow capacity for high-viscosity materials without excessive pressure drop. Shuanghao designs runner diameters larger than those typically used for high-flow polymers, reducing resistance and enabling faster filling. Balanced runner geometries ensure that each cavity receives equal material volume regardless of its position in the mold.
High-viscosity materials are particularly susceptible to air trap defects because their slow flow gives trapped air more time to compress and burn. Shuanghao's advanced venting solutions include strategic vent placement at last fill points, precision depth control, and self-cleaning vent designs that maintain performance over millions of cycles.
Higher melt temperatures reduce viscosity, improving flow without changing the material grade. Shuanghao recommends operating at the upper end of the material supplier's temperature range for high-viscosity applications. However, the temperature must be carefully controlled to avoid degradation, particularly with materials that are thermally sensitive.
Mold temperature also plays a critical role. Higher mold temperatures delay freeze-off, allowing the material more time to fill thin sections. For high-viscosity polymers, Shuanghao often recommends mold temperatures 10-20°C higher than those used for standard materials.
Injection speed profiles must be carefully optimized for high-viscosity materials. While slower speeds reduce shear heating and the risk of degradation, they may allow the material to freeze before complete fill. Shuanghao employs profiled injection speeds that start moderate to reduce shear, then increase as the melt advances to ensure complete cavity filling.
Higher injection pressures are typically required for high-viscosity materials. Shuanghao's robust mold construction, with high-strength steel and reinforced mold bases, withstands these elevated pressures without deflection or damage.
Shuanghao's Industry 4.0 integration includes cavity pressure sensors that provide real-time data on fill and pack behavior. For high-viscosity materials, this feedback is particularly valuable. Pressure profiles reveal whether the material is reaching all cavity areas before freeze-off, and alerts operators to developing issues before defective parts are produced.

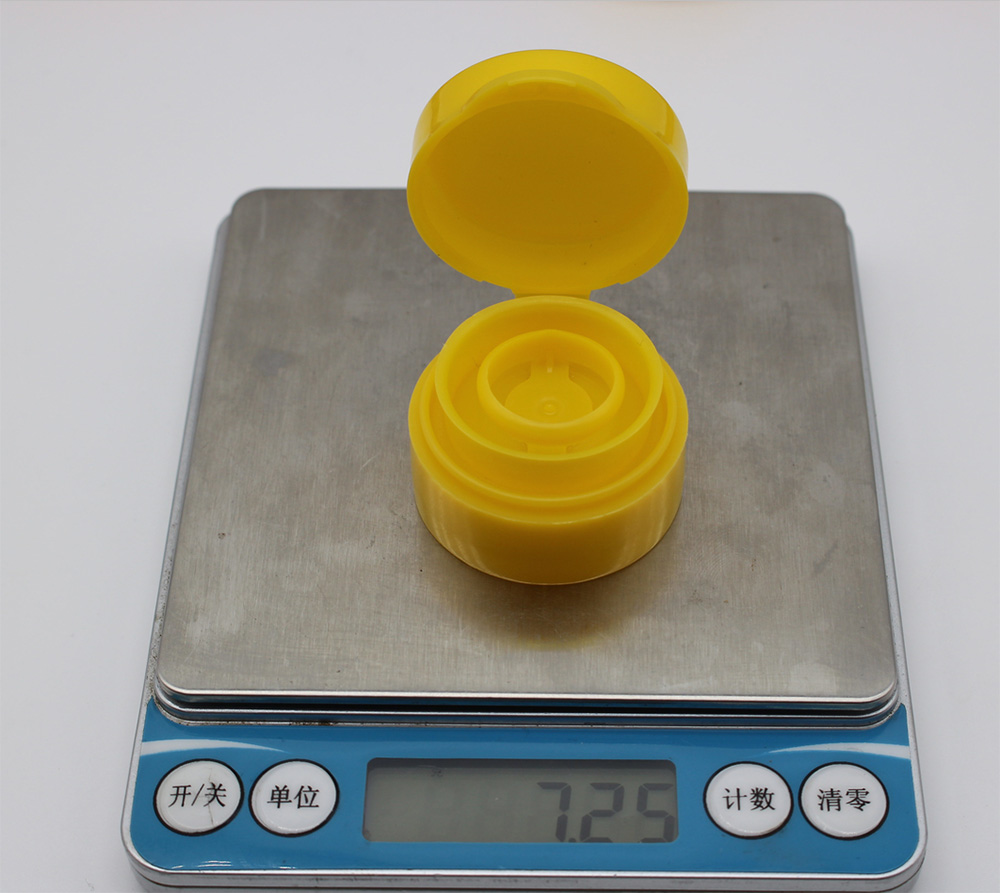

High-viscosity materials often exhibit different shrinkage characteristics than their high-flow counterparts. Shuanghao's precision mold design accounts for these differences through adjusted cavity sizing and compensation factors. Part weight monitoring and dimensional verification ensure that caps meet specifications despite material-induced variations.
The higher injection pressures required for high-viscosity materials can create increased residual stress in finished parts. Shuanghao addresses this through optimized gate design, balanced cooling, and where necessary, post-mold annealing to relieve stress that could otherwise lead to warpage or environmental stress cracking.
Successfully molding high-viscosity materials requires a holistic approach that integrates material selection, mold design, process optimization, and quality control. Shuanghao's decades of experience across the full range of cap molding materials—from high-flow grades for lightweight beverage caps to high-viscosity polymers for demanding industrial applications—ensures that every material presents an opportunity rather than a challenge.
Whether your application requires the superior chemical resistance of high-density polyethylene, the toughness of impact-modified polypropylene, or the dimensional stability of a bimodal polymer, Shuanghao has the engineering expertise and mold technologies to deliver reliable, high-quality production.
Choose Shuanghao. Choose expertise for every material.
