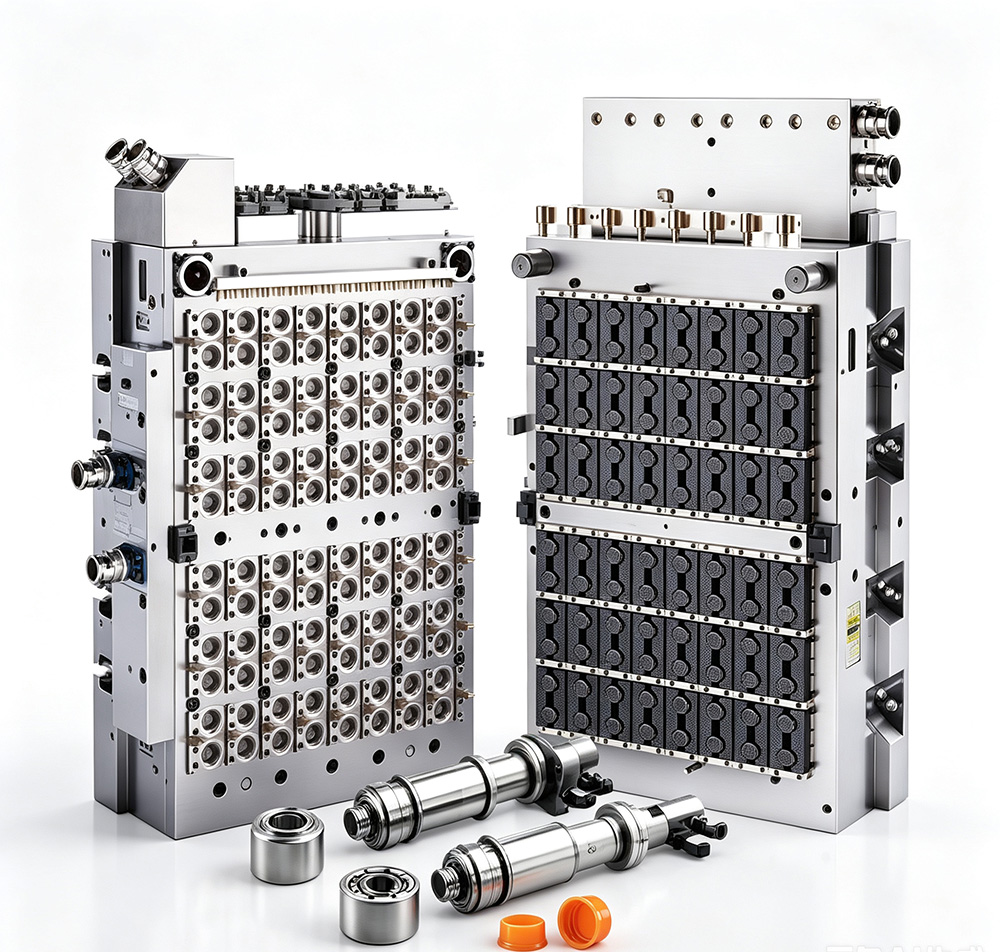

In the world of cap injection molding, the mold's surface condition is the single most important factor determining cap quality, release performance, and tool longevity. The surface finish of the cavity transfers directly to every cap produced, affecting everything from aesthetics and sealing integrity to ejection force and cycle time.
At Shuanghao, we treat mold surface treatment as a precision engineering discipline . This guide explores the range of surface finish options, coating technologies, and treatment methods available for cap molds, and provides practical guidance for selecting the optimal surface solution for each application.
Before diving into specific treatments, it is essential to distinguish between two related but distinct concepts:
Mold surface texture refers to the physical topography of the cavity surface—the microscopic peaks and valleys that are directly transferred to the cap during molding. Texture ranges from mirror-polished finishes (Ra 0.01-0.05 μm) to coarse matte and patterned surfaces (Ra 3.0-10.0 μm) .
Mold surface coatings are thin layers of foreign material applied to the cavity surface after machining. These coatings modify surface properties—reducing friction, increasing hardness, improving corrosion resistance, or enhancing release performance—without significantly altering the underlying texture .
Both texture and coatings are essential tools in the mold designer's toolkit. They work together to achieve the desired cap appearance, performance, and mold durability.
Shuanghao offers a comprehensive range of surface texture options to meet diverse cap requirements .
High-gloss finishes create mirror-like surfaces with exceptional reflectivity. SPI A1 (diamond buff) achieves Ra 0.012-0.025 μm, while SPI A3 (stone polish) achieves Ra 0.05-0.10 μm .
Applications: Premium cosmetic caps, luxury beverage closures, and any application where visual appeal drives purchasing decisions. High-gloss surfaces make colors appear more vibrant and saturated .
Considerations: High-gloss finishes show every scratch, fingerprint, and defect. They require the most expensive manufacturing and may increase ejection force due to surface adhesion .
Matte finishes create non-reflective, smooth surfaces with a soft tactile feel. SPI B1 (600 grit paper) achieves Ra 0.10-0.25 μm, while SPI B3 (320 grit) achieves Ra 0.50-0.80 μm .
Applications: Modern, minimalist packaging designs; caps where fingerprints would be undesirable; applications requiring a soft, premium tactile feel .
Benefits: Hide minor surface imperfections and fingerprints. Provide a professional, understated appearance at lower cost than high-gloss finishes .
These finishes are functional rather than decorative. SPI C1 (600 stone) achieves Ra 0.80-1.60 μm, while SPI C3 (320 stone) achieves Ra 3.20-6.30 μm .
Applications: Industrial caps, caps that will be painted or decorated after molding, and applications where cost is prioritized over appearance .
VDI textures provide grip and distinctive appearance. VDI 12-15 (fine texture) provides subtle grip. VDI 18-24 (medium texture) provides visible texture with good grip. VDI 27-33 (coarse texture) provides aggressive grip. VDI 36-45 (very coarse) provides heavy-grip for industrial applications .
Applications: Sports caps requiring grip, caps for elderly users needing easier opening, brand-differentiating designs, and hiding surface defects .
Benefits: Excellent grip, hide scratches and defects very well, and create distinctive brand identity. However, deep textures increase manufacturing cost and may affect ejection .
Custom patterns can be created through specialized machining, laser texturing, or chemical etching. These finishes create logos, designs, or brand elements on cap surfaces .
Different texture types require different manufacturing methods :
Diamond Polishing: Uses progressively finer diamond abrasives to achieve SPI A1 mirror finishes (Ra 0.01-0.02 μm). Requires skilled craftsmen and specialized equipment .
Mechanical Polishing: Uses abrasive stones and papers to achieve standard finishes (SPI B1-B3, Ra 0.10-0.80 μm). Suitable for most cap molds .
EDM Texturing: Electrical discharge machining creates texture through controlled electrical erosion. Can produce matte finishes (Ra 0.8-5.0 μm) and custom patterns .
Media Blasting: Uses fine particles (glass bead, aluminum oxide) to create uniform matte finishes or aggressive textures .
Chemical Etching: Uses acids to create controlled surface erosion. Ideal for large molds, complex geometries, and replicating natural patterns .
Laser Texturing: Uses focused laser beams to create precise surface features, custom patterns, and logos with high accuracy .
Coatings provide functional benefits that extend beyond texture alone.
PVD coatings are extremely thin (typically a few microns) layers of hard, wear-resistant materials applied to the cavity surface. They preserve the underlying texture while adding functional properties .
Common PVD Coating Types:
TiN (Titanium Nitride): Gold-colored coating providing excellent wear resistance and reduced friction .
DLC (Diamond-Like Carbon): Very hard, extremely low-friction coating. Ideal for high-gloss cosmetic caps and sticky materials .
CrN (Chromium Nitride): Multilayer coating providing superior corrosion and wear resistance. Particularly effective for medical applications .
TiCN (Titanium Carbonitride): Provides enhanced hardness and wear resistance for abrasive materials .
Enhanced Durability and Wear Resistance: PVD coatings significantly increase the mold's resistance to abrasive wear from filled resins (glass fibers, minerals). This extends lifespan, reduces maintenance frequency, and ensures consistent part quality over millions of cycles .
Improved Part Release and Reduced Cycle Time: Coatings with low coefficient of friction (TiN, DLC) prevent plastic from sticking to the mold surface. Easier release enables faster ejection, eliminates the need for external mold release sprays, and reduces scratches or drag marks on finished parts .
Corrosion and Chemical Resistance: Medical plastics such as PVC can release corrosive species when heated. PVD coatings provide a thin, low‑porosity barrier that reduces direct metal-polymer contact and protects the mold surface .
Maintenance of Tight Tolerances: PVD coating deposits an extremely thin film without altering the mold's geometry—critical for bottle closures that require very tight tolerances .
Anti-Adhesion Properties: Diamond-like composite coatings (Ti/DLC, Cr/DLC, CrN/DLC) provide excellent anti-adhesion performance for plasticized materials, improving demolding efficiency and reducing scrap rates .
Coatings are recommended for: ultra-high-volume production (10M+ cycles); abrasive materials (glass-filled, mineral-filled); sticky materials that require low-friction release; high-gloss cosmetic caps requiring scratch resistance; and pharmaceutical/medical applications where hygiene is critical .
A newer technology allows anti-adhesion coatings to be produced directly in the mold through plasma polymerization. The coating is only a few nanometers thick and has no effect on dimensional accuracy. It is silicone-free and can be regenerated automatically in the mold after a defined number of cycles—eliminating the need for wet chemical release agents and mold disassembly .
For high-end skincare, fragrance, and cosmetic closures, Shuanghao recommends high-gloss polished finish (SPI A1-A2) for mirror-like luxury appearance, or fine matte finish (SPI B1) for modern elegance. Sealing surfaces must be SPI A1 to ensure seal integrity. S136 stainless steel provides superior polishability for mirror finishes .
For water, CSD, and sports drink caps, fine matte finish (SPI B2) for standard caps, or VDI 18-24 texture for sports caps requiring grip. Sealing surfaces must be smooth .
Fine matte finish (SPI B2) for clean, professional appearance. Sealing surfaces require SPI A1-A2 for reliable sealing. PVD coatings (CrN, TiN) provide corrosion resistance for cleaning chemicals .
Standard industrial finish (SPI C1) for cost-effective production, or fine matte finish (SPI B2) for branded products .
Standard industrial finish (SPI C2-C3) for maximum cost efficiency, or VDI 27-33 for heavy-grip applications .
Surface texture and coatings must be verified to ensure consistency :
Profilometers measure Ra, Rz, and other texture parameters. Optical comparators provide visual comparison to texture standards. CMM inspection verifies cavity dimensions. Gloss meters quantify surface reflectivity. Adhesion testing validates coating integrity.
Every cavity must have identical surface texture. Shuanghao uses identical finishing processes for all cavities and verifies cavity-to-cavity consistency .
Mold surface treatment and coatings are not cosmetic considerations. They are precision engineering disciplines that directly affect cap quality, production efficiency, and mold longevity.
Shuanghao's comprehensive approach to surface treatment delivers texture and coating options for every application, precise manufacturing methods to achieve consistent results, functional balance between aesthetics and performance, and rigorous quality control for consistent cavity-to-cavity finish.
Whether you need mirror-gloss cosmetic caps, high-grip sports closures, or corrosion-resistant pharmaceutical molds, Shuanghao has the surface treatment expertise to deliver.
