Caps with built-in pour spouts represent a sophisticated category of dispensing closures that combine the sealing function of a traditional cap with an integrated pouring nozzle. These specialized closures are essential for products requiring controlled, mess-free dispensing—from cooking oils and sauces to industrial chemicals and personal care liquids. At Shuanghao, we have developed comprehensive mold solutions for these precision closures, addressing the unique challenges of nozzle design, sealing integrity, and manufacturing consistency.
Pour spout caps, also referred to as nozzle caps or spout caps, are functional closures that incorporate an integrated dispensing nozzle into the cap design. The user removes the main cap or opens a flip-top to access the nozzle, which allows precise, controlled dispensing of liquids, gels, or semi-viscous products. This design is essential for applications where accurate dosage and mess-free application are critical.
These closures are widely used across multiple industries, including:
Food and beverage: Cooking oils, condiments, syrups, and sauces
Personal care: Shampoos, lotions, liquid soaps
Industrial: Lubricants, adhesives, chemical dispensers
Pharmaceutical: Liquid medications, eye drops, topical solutions
The nozzle is the most critical feature of any pour spout cap. Even slight variations in orifice diameter dramatically affect flow rate, stream consistency, and drip control. Shuanghao achieves orifice precision through:
Specialized core pin design: Nozzle orifices are formed by precision-machined core pins, often requiring tolerances below 0.01mm for sizes under 1mm
Customizable tip configurations: Orifice sizes accommodate various product viscosities—from thin liquids to thick gels
Angled or straight nozzle designs: Based on application requirements
Anti-drip features: Preventing messy residue after dispensing
The cap must maintain a secure seal when the nozzle is not in use. Sealing features may include:
Internal sealing ribs: Contacting the bottle neck or inner seal
Plug seals: Inserting into the bottle opening
Linerless sealing surfaces: Precision-machined for leak-proof closure
Overcap designs: Secondary caps protecting the nozzle
The pour spout may be integrated as:
Snap-on nozzles: For one-handed operation
Screw-on nozzles: With threaded connections
Flip-top designs: Covering the nozzle for protection
Single-piece designs: Where the pour spout is molded as part of the cap body
Shuanghao optimizes pour spout cap molds for common dispensing materials:
| Material | Key Properties | Typical Applications |
|---|---|---|
| PP (Polypropylene) | Chemical resistance, flexibility, food-grade options | Food, pharmaceutical, personal care |
| PE (Polyethylene) | Durability, chemical resistance, economical | Industrial, household chemicals |
| LDPE | Flexibility, squeezability | Squeeze bottles, dispensers |
| Food-Grade PP/PE | FDA-compliant, BPA-free | Food contact applications |
Shuanghao's molds incorporate specialized elements for dispensing performance:
Customizable tip orifice sizes: Accommodating various product viscosities
Angled or straight nozzle configurations: Based on application requirements
Anti-drip design features: Preventing messy residue after dispensing
Snap-on or screw-on nozzle options: Depending on user preference
Shuanghao offers pour spout cap molds in various cavity configurations to match specific production requirements:
| Cavity Count | Ideal Application | Production Volume |
|---|---|---|
| 16-24 cavities | Small to medium-scale production | Low to medium |
| 24-48 cavities | Medium to high-volume production | Medium to high |
| 48-72 cavities | High-volume industrial production | High |
Pour spout cap molds feature precision hot runner technology ensuring consistent quality across all cavities:
Individual temperature control: For each nozzle, maintaining accuracy within ±1°C
Balanced filling: Across all cavities ensuring consistent cap dimensions and nozzle orifice accuracy
Valve gate technology: Providing clean gate vestige on non-visible areas
Optimized material flow: Preventing defects in thin nozzle sections
Proper ejection is essential for pour spout caps to prevent damage to delicate nozzle tips:
Gentle ejection pins: Precisely positioned to avoid nozzle contact
Synchronized ejection timing: Ensuring caps release cleanly without deformation
Optional unscrewing mechanisms: For caps requiring threaded nozzles
Shuanghao pour spout cap molds are constructed from high-quality materials for extended mold life:
| Component | Material | Treatment |
|---|---|---|
| Core and Cavity Inserts | S136 Stainless Steel | Vacuum quenching (HRC 43-52) |
| Nozzle Forming Inserts | S136 / H13 | Precision machined |
| Mold Base | P20 Steel | Pre-hardened |
| Hot Runner Components | H13 Tool Steel | Standard |
Every Shuanghao pour spout cap mold undergoes rigorous quality testing before shipment:

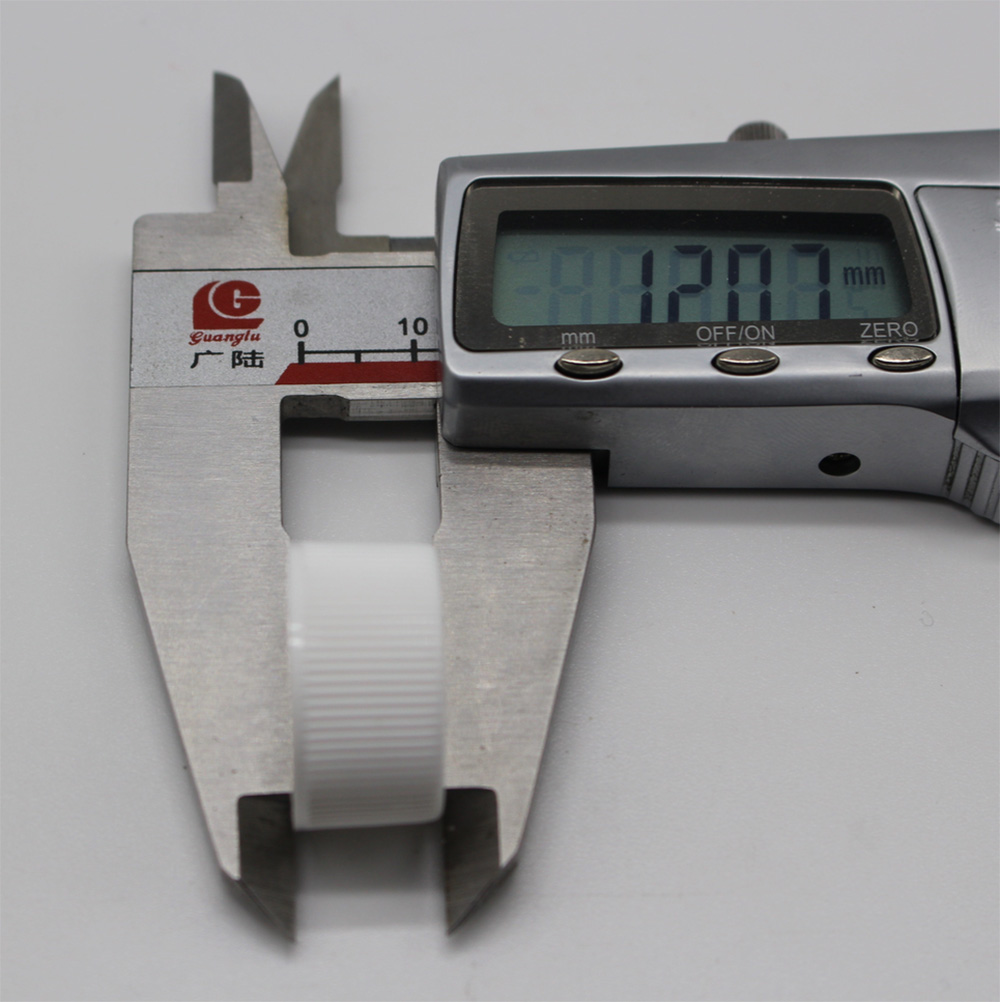

CMM inspection: Confirming all critical measurements
Orifice diameter verification: Using precision pin gauges
Nozzle geometry inspection: Optical measurement systems
Dispensing flow testing: Verifying consistent flow rates
Leak testing: Pressure decay or vacuum methods
Seal integrity testing: Confirming leak-proof closure
Sample availability: For customer approval
Dimensional inspection: Confirming all critical measurements
Design iteration: Modifications based on sample evaluation
Shuanghao Machinery offers extensive customization options for pour spout cap molds:
Precision tips: For drop-by-drop dispensing
Slit tips: For gel and cream applications
Brush or applicator tips: For targeted use
Snap-cap or twist-open nozzle designs
Screw-on caps: With threaded nozzles
Snap-on caps: For one-handed operation
Flip-top designs: Covering the nozzle
Child-resistant options: For safety applications
Custom logos and text: Embossed on cap surface
Color options: Matching brand identity
Matte or gloss finishes: As required
Translucent or opaque material options
Caps with built-in pour spouts combine sealing functionality with precise dispensing capability. At Shuanghao, we have developed specialized mold solutions that address the unique challenges of these closures—from precision nozzle geometry and sealing integrity to robust construction and consistent quality. Whether you need pour spout caps for cooking oils, personal care products, industrial chemicals, or pharmaceutical applications, Shuanghao has the engineering expertise to deliver reliable, high-performance molds.
Choose Shuanghao. Choose precision dispensing solutions.
