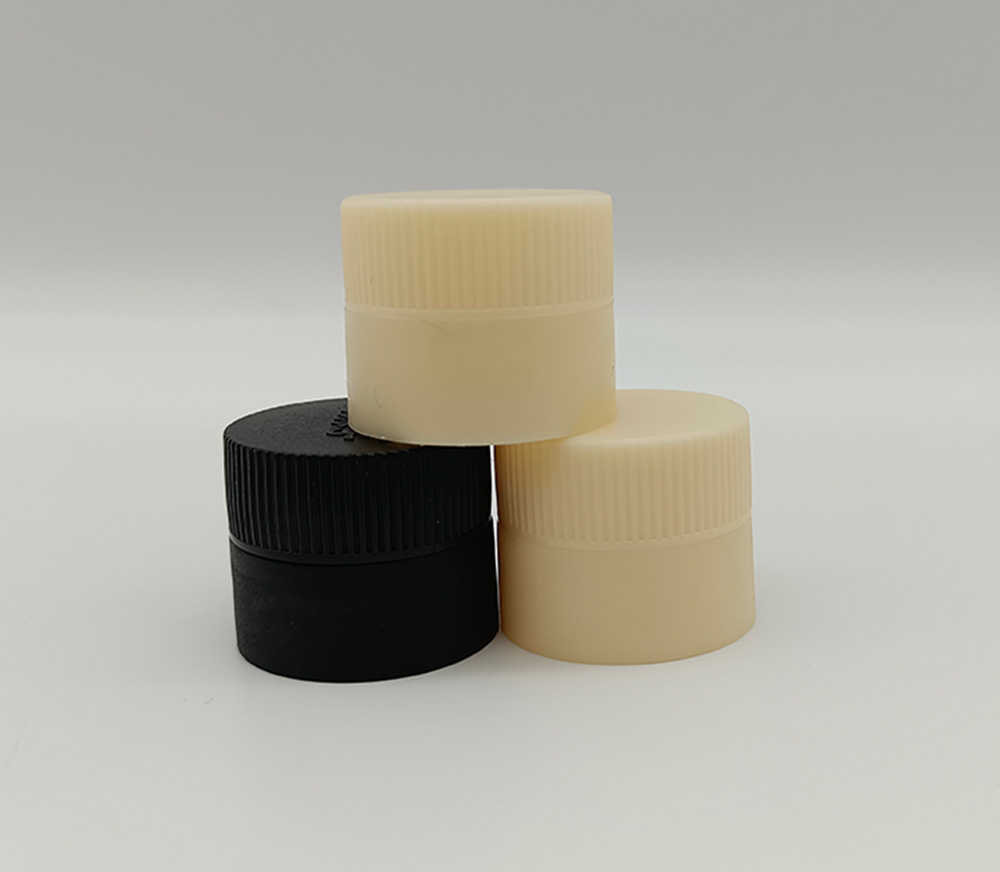

A new cap mold has arrived. It has been precision-machined, carefully polished, and thoroughly inspected. Now it must prove itself on the production floor.
Commissioning a new cap mold is a critical phase. Proper startup procedures ensure the mold performs as designed. Rushing the process leads to damaged molds, rejected parts, and delayed production. Systematic troubleshooting resolves issues quickly when they arise.
At Shuanghao, we have commissioned thousands of cap molds across dozens of countries. This guide shares our proven procedures for successful mold startup and troubleshooting.
Before the mold touches the machine, preparation is essential.
Verify Mold Documentation
Confirm mold dimensions match machine specifications. Review cooling circuit layout and connection points. Check hot runner electrical requirements. Review recommended process parameters.
Inspect the Mold
Check for shipping damage (scratches, dents, corrosion). Verify all components are present. Ensure cavity surfaces are clean and free of residue. Confirm ejector pins move freely.
Prepare Auxiliary Equipment
Verify cooling water supply (temperature, flow rate, pressure). Check hot runner controller functionality. Prepare material (properly dried, correct grade). Have purging compound ready.
Proper installation prevents damage and ensures safe operation.
Mounting
Clean machine platens thoroughly. Align mold with machine center. Install clamps at specified positions. Verify mold is level and square.
Connection
Connect cooling circuits in correct orientation (in/out). Verify no cross-connections between circuits. Connect hot runner electrical. Connect thermocouples and heaters. Connect ejector mechanism.
Safety Check
Verify mold safety straps are removed. Check for interference during mold closing. Test ejector operation manually. Verify hot runner controller communication.
Heating must be done gradually to prevent thermal shock.
Hot Runner Heating
Heat in stages: 100°C, hold 15 minutes; 150°C, hold 15 minutes; 200°C, hold 15 minutes; Operating temperature, hold 30 minutes. Monitor temperatures at each stage. Check for heater failures or thermocouple issues.
Mold Heating
Start cooling water flow before heating mold. Heat mold gradually using circulating water or mold heaters. Monitor mold temperature uniformity. Allow mold to reach thermal equilibrium (typically 30-60 minutes).
Systematic process optimization ensures consistent quality.
Initial Shot Settings
Set injection pressure to 80% of machine maximum. Set injection speed to moderate (50-100 mm/s). Set shot size to 80% of estimated fill. Set pack pressure to 50% of injection pressure. Set cooling time conservatively (add 50% to estimate).
First Shots
Use purging compound for first 5-10 shots. Switch to production material. Collect parts from first full shots. Inspect for obvious defects (short shots, flash, burn marks).
Fill Study
Perform short shot study: reduce shot size incrementally until parts are partially filled. Collect parts at 90%, 80%, 70%, 60% fill. Observe fill patterns. Identify last fill points. Check for flow imbalances.
Process Optimization
Adjust melt temperature to middle of supplier range. Adjust mold temperature to recommended settings. Increase injection speed until parts fill without flash. Adjust packing pressure to eliminate sink marks. Adjust cooling time until parts eject without deformation.
Validation confirms the mold produces acceptable parts.
Dimensional Verification
Measure critical dimensions on parts from each cavity. Verify cap diameter, height, and thread dimensions. Check sealing surface flatness. Confirm TE band dimensions.
Functional Testing
Measure opening torque. Verify seal integrity (leak testing). Check child-resistant function where applicable. Test tamper-evident band breakaway.
Cavity-to-Cavity Consistency
Weigh caps from each cavity. Measure dimensions from each cavity. Compare torque across cavities. Variation should be within specified limits.
Capability Study
Run mold continuously for 1-2 hours. Collect samples at regular intervals. Calculate Cpk for critical dimensions. Target Cpk > 1.33 for new molds.
Problem: Mold Will Not Close
Mold cannot close to full clamp position. Solutions include checking for obstructions between mold halves, verifying ejector plate is fully retracted, checking for mold damage, and verifying safety interlocks.
Problem: Short Shots
Parts do not fill completely. Solutions include increasing injection speed, raising melt temperature, increasing shot size, checking for blocked gates, and verifying venting.
Problem: Flash
Excess material at parting line. Solutions include verifying mold is fully closed, increasing clamp force, reducing injection pressure, reducing injection speed, and checking for mold damage.
Problem: Parts Stick to Core
Caps remain on core after ejection. Solutions include increasing ejector force, adding ejector pins, improving core polish, increasing draft angle, and adding air ejection.
Problem: Burn Marks
Dark streaks at last fill points. Solutions include adding vents, cleaning existing vents, reducing injection speed, reducing packing pressure, and modifying gate location.
Short Shots
Possible causes: low melt temperature, low injection speed, inadequate shot size, blocked gate, high material viscosity. Solutions: increase temperatures, increase speed, increase shot size, clear gate, verify material.
Flash
Possible causes: excessive injection pressure, excessive clamp force not achieved, mold damage, low viscosity material. Solutions: reduce pressure, verify clamp, repair mold, adjust material.
Sink Marks
Possible causes: insufficient packing, thin wall over thick section, gate too small, inadequate cooling. Solutions: increase pack pressure/time, add rib behind thick section, enlarge gate, improve cooling.
Warpage
Possible causes: uneven cooling, insufficient cooling time, non-uniform wall thickness, ejection deformation. Solutions: balance cooling, increase cooling time, modify part design, adjust ejection.
Burn Marks
Possible causes: inadequate venting, excessive injection speed, trapped air. Solutions: add/clean vents, reduce speed, modify gate location.
Flow Marks
Possible causes: slow injection speed, low melt temperature, poor gate design, mold temperature too low. Solutions: increase speed, raise temperatures, modify gate, increase mold temperature.
Ejector Pin Marks
Possible causes: pins too small, excessive ejection force, pins in visible location. Solutions: use larger pins, reduce ejection force, relocate pins, use sleeve ejectors.
Color Variation
Possible causes: material variation, temperature variation, contamination, screw wear. Solutions: verify material batch, stabilize temperatures, purge thoroughly, check screw.
Customer Case: 72-Cavity Water Cap
A 72-cavity cap mold required commissioning on a customer's machine. Initial shots showed fill imbalance—cavities near the sprue filling 0.5 seconds faster than end cavities.
Shuanghao adjusted hot runner nozzle temperatures (+5°C on cool cavities, -5°C on hot cavities). Fill time variation decreased to 0.1 seconds. Cavity-to-cavity weight variation decreased from 0.08g to 0.02g. The mold was qualified in 6 hours.
Customer Case: High-Gloss Cosmetic Cap
A high-gloss cosmetic cap mold had sink marks on the top panel. Initial process could not eliminate them without causing other defects.
Shuanghao increased gate size by 20 percent, added packing time, and reduced cooling water temperature. Sink marks were eliminated. First-pass yield improved from 85 percent to 97 percent.
Shuanghao's systematic approach to mold commissioning provides pre-installation verification of documentation, inspection, and auxiliary equipment. Proper installation with careful mounting, connections, and safety checks. Controlled heating to prevent thermal shock. Process optimization using fill studies and systematic parameter adjustment. Validation including dimensional verification, functional testing, and capability studies. Troubleshooting expertise with proven solutions for common defects.
Proper commissioning is the foundation of successful cap production. Rushing the process or skipping steps leads to quality problems, damaged molds, and delayed production.
Shuanghao's guide to cap mold commissioning provides the step-by-step procedures for preparation, installation, heating, optimization, and validation. The troubleshooting guide helps resolve issues quickly when they arise.
Whether you are commissioning a new mold or troubleshooting an existing one, Shuanghao has the expertise to help you start right and produce right.
