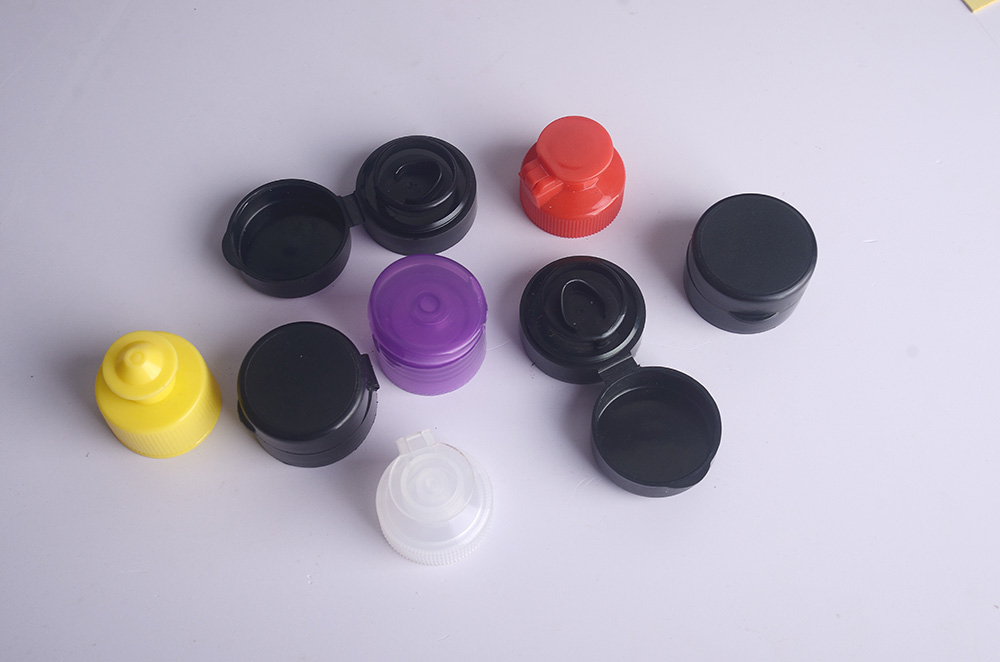

In the world of high-volume cap manufacturing, every second counts. A 48-cavity mold running at a 6-second cycle produces approximately 28,800 caps per hour. The same mold running at a 4-second cycle produces approximately 43,200 caps per hour. That is 50 percent more output from the same machine, the same mold, the same operator, the same floor space.
The difference between 6 seconds and 4 seconds is not just a matter of running the machine faster. It requires fundamental rethinking of mold design, cooling strategy, ejection systems, and process control. Every component must be optimized for speed. Every fraction of a second must be eliminated.
At Shuanghao, we have developed design principles specifically for high-speed cap molding. This article reveals those principles and how they enable 4-second cycle times.
Before discussing design principles, it is essential to understand where the time goes.
Cycle Time Breakdown
Total cycle time consists of several elements. Injection time typically takes 0.5 to 1.0 second. Packing and holding takes 0.5 to 1.0 second. Cooling time is the largest component at 2.0 to 3.0 seconds. Mold open and close takes 0.5 to 1.0 second. Ejection takes 0.2 to 0.5 second.
To achieve a 4-second total cycle, cooling time must be minimized. Each fraction of a second saved in cooling pays dividends over millions of cycles.
The Speed-Quality Balance
High-speed molding cannot compromise quality. Caps must still meet dimensional specifications, seal properly, and perform reliably. Shuanghao's high-speed design principles maintain quality while reducing cycle time.
Cooling is the dominant factor in cycle time. Reducing cooling time is the most effective path to faster cycles.
Conformal Cooling Layout
Traditional cooling channels are straight-drilled lines that may not follow cavity contours. Shuanghao's high-speed molds use conformal cooling channels that follow the exact shape of the cap.
For high-speed operation, cooling channels are placed as close to the cavity surface as structural integrity allows. Typical channel-to-surface distance is 6 to 10 millimeters. Coolant flow is optimized for maximum heat transfer.
Coolant Temperature and Flow
Higher ΔT (temperature difference between melt and coolant) increases cooling rate. Shuanghao recommends coolant temperatures of 5 to 10 degrees Celsius for high-speed molding. Flow rates of 15 to 25 liters per minute per circuit maximize heat transfer. Turbulent flow, indicated by Reynolds numbers above 10,000, provides the best cooling efficiency.
Multi-Zone Cooling
Different cap areas have different cooling requirements. Shuanghao's high-speed molds feature independent cooling circuits for the top panel, sidewall, thread area, and TE band. Each zone can be optimized independently.
Material Selection for Cooling
Beryllium copper inserts provide 5 to 10 times higher thermal conductivity than tool steel. Shuanghao uses beryllium copper in the top panel and gate areas. This aggressive cooling reduces cycle time by 15 to 25 percent.
Flow balance becomes more critical as cycle time decreases.
Balanced Flow Lengths
Every cavity must have the same flow path length from the sprue. Shuanghao's hot runner manifold design ensures geometric balance across all cavities. This eliminates fill time variation that would extend cycle time.
Large-Diameter Flow Channels
To achieve 4-second cycles, material must flow quickly through the runner. Shuanghao uses larger diameter flow channels than conventional molds. This reduces flow resistance and allows faster injection.
Valve Gate Technology
Valve gates provide precise control of gate opening and closing. For high-speed molding, valve gates open quickly at the start of injection. They close precisely to prevent drool or stringing. Individual cavity valve gate control allows fine-tuning of fill balance.
Nozzle Temperature Uniformity
Cavity-to-cavity temperature variation must be minimal. Shuanghao's hot runner system maintains nozzle temperature uniformity within plus or minus 2 degrees Celsius. This ensures consistent fill across all cavities.
Ejection speed affects cycle time and must be optimized.
Low-Friction Core Design
Core surface finish significantly affects ejection force. Shuanghao polishes cores to Ra 0.2 micrometers or smoother. This reduces friction and allows faster ejection.
Optimized Draft Angles
Draft angles of 0.5 to 1 degree reduce the force required for ejection. Shuanghao maximizes draft angles without compromising cap function. Sacrificial ribs may be added to facilitate ejection.
Ejector Pin Placement
Sufficient ejector pins distribute force evenly, allowing faster ejection. Shuanghao uses 6 to 8 pins for a 28-millimeter cap, 8 to 12 pins for larger caps. Larger diameter pins distribute force over greater area.
Air Ejection Assist
Compressed air ejection creates an air layer between cap and core. This dramatically reduces friction. Shuanghao uses air ejection on high-speed molds to reduce ejection time. Air is applied for 0.1 to 0.2 seconds during ejection.
Sleeve Ejectors
For large caps or caps with delicate features, sleeve ejectors provide even force distribution. The sleeve pushes the entire cap rim simultaneously. This allows faster ejection without deformation.
High-speed molding subjects molds to higher mechanical stress.
Robust Mold Base
The mold base must withstand faster injection speeds and higher pressures. Shuanghao uses heavy-duty mold plates with increased thickness. High-strength steel grades provide safety margins.
Precision Alignment
Alignment systems must maintain precision through millions of high-speed cycles. Shuanghao uses heavy-duty guide pins and bushings. Wear-resistant coatings extend alignment life.
Stability Under High Pressure
Fast filling creates high injection pressures. Shuanghao's molds are designed to minimize deflection under pressure. Finite element analysis validates structural integrity.
The injection unit must keep pace with fast cycles.
Recovery Time
Screw recovery must occur within the cycle time. For 4-second cycles, recovery must complete in 2 to 3 seconds. Shuanghao works with machine suppliers to ensure adequate plasticizing capacity.
Screw Design
High-speed molding requires screws optimized for fast recovery. Shuanghao recommends screws with high compression ratios and barrier flight designs.
High-speed molding requires precise, repeatable control.
Cavity Pressure Monitoring
Cavity pressure sensors provide real-time feedback on fill and pack. This allows closed-loop control of injection speed and packing pressure. Shuanghao integrates cavity pressure sensors into high-speed molds.
Temperature Control
Temperature stability is critical for 4-second cycles. Shuanghao's molds use high-response thermocouples. Proportional-integral-derivative controllers maintain setpoint temperatures.
Automated Process Adjustment
Modern injection molding machines can adjust process parameters based on sensor feedback. Shuanghao's molds are designed for compatibility with these systems.
Maintaining quality at 4-second cycles requires special attention.
Cap Dimensional Stability
At high speed, shrinkage may be less predictable. Shuanghao validates dimensions after high-speed runs. Adjustments to process compensation may be needed.
Surface Finish
High-speed injection can affect surface finish. Shuanghao verifies gloss and surface quality. Mold temperature may need adjustment to maintain appearance.
Sealing Surface Integrity
The sealing surface must be flawless even at high speeds. Shuanghao verifies sealing surface finish and flatness.
Not all machines can achieve 4-second cycles.
Clamp Speed
The machine must open and close quickly. Shuanghao recommends machines with high-speed clamp systems. Clamp speeds of 500 to 800 millimeters per second are typical.
Injection Speed
High injection speed is required for fast cavity fill. Shuanghao recommends injection speeds of 300 to 500 millimeters per second. Accumulator-assisted injection may be necessary.
Controller Speed
The machine controller must process data quickly. High-speed data acquisition and processing are essential. Shuanghao recommends modern controller systems with fast I/O.
Customer Case: 48-Cavity Water Bottle Cap
A water bottle cap manufacturer needed to increase output without adding machines. Existing molds were running 6.5-second cycles.
Shuanghao delivered high-speed molds with conformal cooling, optimized valve gate hot runners, air ejection assist, and robust construction.
Cycle time decreased from 6.5 seconds to 4.2 seconds, a 35 percent reduction. Output per machine increased from 26,600 to 41,100 caps per hour. The customer avoided purchasing two additional machines. Annual capacity increased by 60 million caps.
Customer Case: 72-Cavity Beverage Cap
A beverage cap manufacturer wanted to push cycle times below 5 seconds. Existing molds were running 5.8-second cycles.
Shuanghao implemented aggressive conformal cooling, multi-zone temperature control, and high-speed ejection. Cycle time decreased to 4.5 seconds. Quality metrics remained stable. The payback period was 9 months.
Shuanghao's high-speed cap molding expertise delivers aggressive conformal cooling with channel-to-surface distances of 6 to 10 millimeters. Balanced hot runner systems with large flow channels and valve gate control. Rapid ejection systems with optimized draft, low-friction cores, and air assist. Robust construction with heavy-duty plates and precision alignment. Process control with cavity pressure monitoring and fast temperature response.
High-speed cap molding does not have to mean high-quality problems. With the right design principles, 4-second cycles are achievable while maintaining cap quality.
Shuanghao's design principles for high-speed cap molding deliver aggressive cooling that reduces cycle time by 15 to 25 percent. Balanced flow systems ensure consistent fill at high speeds. Rapid ejection systems minimize the time required for part release. Robust construction withstands the demands of high-speed operation.
Whether you are targeting 4-second cycles or simply want to reduce your current cycle time, Shuanghao has the design expertise to help you achieve higher output without compromising quality.
