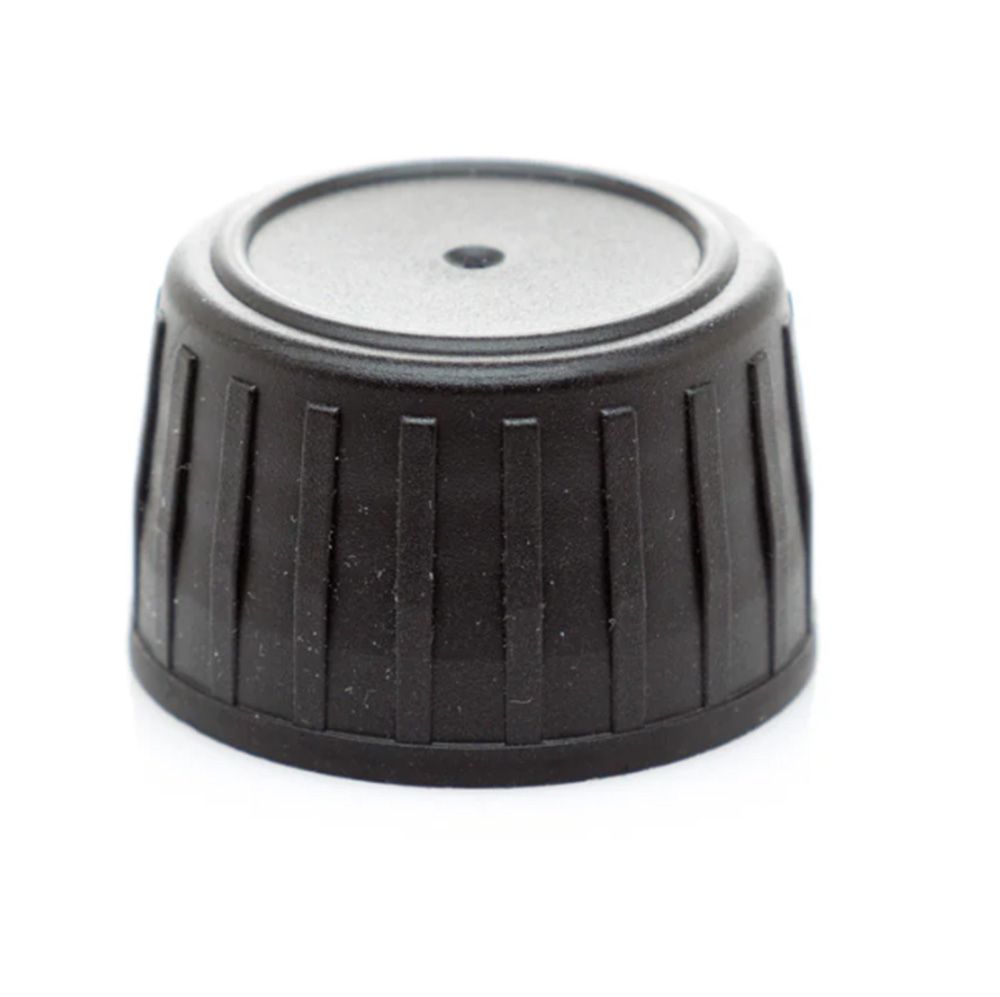

In the world of high-volume cap manufacturing, consistency is king. A bottle cap mold may produce millions of caps over its lifetime—and every single cap must meet the same exacting standards for sealing performance, opening torque, and dimensional accuracy.
The challenge is immense. Each cycle subjects the mold to:
High injection pressures (500–2,000 bar)
Rapid temperature fluctuations (from molten plastic to cooling water)
Mechanical stress from opening, closing, and ejection
Abrasive wear from millions of cycles
At Shuanghao, we have dedicated ourselves to mastering this challenge. Our bottle cap molds are engineered to deliver micron-level precision and long-term stability—consistently producing high-quality caps from the first shot to the millionth.
This article explores the technologies and processes that make this possible.
At Shuanghao, we believe that precision without durability is unsustainable, and durability without precision is worthless. Our approach combines five essential elements:
| Element | Contribution to Long-Term Stability |
|---|---|
| Advanced materials | Selected for wear resistance and dimensional stability |
| Precision manufacturing | Achieving micron-level tolerances from the start |
| Optimized cooling | Preventing thermal stress and distortion |
| Robust construction | Withstanding millions of cycles without degradation |
| Rigorous quality control | Verifying consistency at every stage |
The result is a cap mold that delivers consistent part quality over its entire service life—from the first cap to the millionth.
To understand why Shuanghao's approach is unique, it helps to understand the forces that cause molds to lose precision over time.
| Factor | Effect on Mold | Consequence for Caps |
|---|---|---|
| Wear | Gradual material loss from moving parts | Increasing dimensional variation |
| Thermal cycling | Repeated expansion and contraction | Fatigue, cracking, distortion |
| Mechanical stress | High clamping and injection forces | Misalignment, component deformation |
| Corrosion | Chemical attack from resins and coolants | Surface degradation, pitting |
| Contamination | Residue buildup in vents and cooling channels | Inconsistent filling, hot spots |
Shuanghao's engineering addresses each of these factors systematically.
The foundation of any long-life mold is the material from which it is made. Shuanghao selects premium materials based on application requirements.
| Material | Hardness | Wear Resistance | Thermal Conductivity | Best Application |
|---|---|---|---|---|
| S136 (Stainless) | 48-52 HRC | Excellent | Moderate | High-volume, corrosion-risk applications |
| H13 (Tool Steel) | 46-52 HRC | Excellent | Moderate | High-temperature, high-wear applications |
| 420 Stainless | 48-52 HRC | Very good | Moderate | Pharmaceutical, food-grade applications |
| Aluminum (7075) | 150 HB | Good | Excellent | High-speed, lower-volume production |
| Beryllium Copper | 35-40 HRC | Good | Superior | Gate inserts, high-cooling areas |
| Application | Recommended Material | Key Advantage |
|---|---|---|
| High-volume beverage caps (10M+ cycles) | S136 or H13 tool steel | Maximum durability |
| Pharmaceutical caps | 420 stainless steel | Corrosion resistance, cleanability |
| Rapid prototyping or short runs | 7075 aluminum | Fast cooling, quick turnaround |
| High-speed, moderate volume | Aluminum with hard coating | Balance of speed and durability |
| Treatment | Benefit | Typical Improvement |
|---|---|---|
| Nitriding | Increased surface hardness | 2-3x wear resistance |
| TiN coating (Titanium Nitride) | Reduced friction, wear resistance | 3-5x tool life |
| DLC coating (Diamond-Like Carbon) | Extremely low friction | 5-10x tool life |
| Passivation | Corrosion resistance | Prevents surface degradation |
Even the best materials will fail to deliver precision without world-class manufacturing capabilities. Shuanghao's manufacturing facilities are equipped with state-of-the-art machinery designed for micron-level accuracy.
| Capability | Shuanghao Standard |
|---|---|
| CNC machining accuracy | ±0.005mm positioning |
| Surface finish | Ra 0.2–0.4μm on cavity surfaces |
| Cavity-to-cavity variation | ≤0.005mm |
| EDM (Electrical Discharge Machining) | ±0.002mm accuracy |
| Wire EDM | ±0.003mm accuracy |
For multi-cavity cap molds, cavity-to-cavity consistency is critical. Shuanghao employs single-setup machining wherever possible:
All cavities machined in the same setup to eliminate variation
Identical tool paths for every cavity
Consistent surface finishes across all cavities
| Manufacturing Stage | Verification Method |
|---|---|
| Raw material inspection | Material certification, hardness testing |
| Rough machining | Dimensional checks, in-process inspection |
| Finish machining | CMM verification of critical dimensions |
| Surface finishing | Surface roughness measurement |
| Final assembly | Full mold inspection, cavity-to-cavity comparison |
Cooling is one of the most critical factors affecting both cycle time and dimensional stability. Uneven cooling leads to:
Cap warpage and dimensional variation
Inconsistent thread geometry affecting torque
Residual stress that causes post-mold distortion
Extended cycle times reducing productivity
Conformal Cooling Channels:
Unlike traditional straight-drilled cooling lines, Shuanghao molds feature conformal cooling—channels that follow the exact contour of the cap geometry. This ensures:
Uniform heat extraction across threads, sealing surfaces, and tamper-evident bands
Reduced cooling time by 15-25%
Minimized thermal gradients that cause warpage
Zone-Specific Cooling:
Different areas of the cap have different cooling requirements:
| Cooling Zone | Strategy |
|---|---|
| Thread area | Uniform cooling for consistent torque |
| Sealing surface | Precise cooling for reliable sealing |
| Tamper-evident band | Controlled cooling for consistent breakage |
| Skirt/wall | Balanced cooling for roundness |
Beryllium Copper for Critical Areas:
For areas requiring rapid heat extraction—such as thin sealing surfaces or intricate thread details—Shuanghao uses beryllium copper inserts with thermal conductivity 5-10 times higher than tool steel.
We use computational fluid dynamics (CFD) simulation to:
Model coolant flow and heat transfer
Optimize channel placement and geometry
Predict and eliminate hotspots before manufacturing
Ensure cavity-to-cavity cooling consistency
Long-term stability requires a rigid foundation. Shuanghao cap molds feature:
| Feature | Specification |
|---|---|
| Material | High-strength steel (P20, 50C, or stainless) |
| Construction | Stress-relieved to prevent distortion |
| Flatness | ≤0.02mm per meter |
| Surface finish | Precision ground |
| Component | Function | Durability Feature |
|---|---|---|
| Guide pins | Align mold halves during closure | Hardened steel, wear-resistant coating |
| Guide bushings | Receive guide pins | Bronze or steel with lubrication grooves |
| Locking mechanisms | Prevent movement during injection | Hardened, precision-ground surfaces |
| Return pins | Ensure proper ejection plate return | Hardened, wear-resistant |
All moving components are manufactured from hardened tool steel and precision-ground to ensure:
Consistent alignment over millions of cycles
Minimal wear between mating surfaces
Extended service life between maintenance intervals
The hot runner system is the heart of any multi-cavity cap mold. Shuanghao's hot runner technology ensures consistent filling and balanced packing across all cavities.
| Feature | Benefit for Long-Term Stability |
|---|---|
| Balanced flow channels | Equal melt delivery to every cavity, cycle after cycle |
| Individual nozzle temperature control | Compensates for minor variations, maintains consistency |
| Valve gate technology | Clean gate marks, consistent packing pressure |
| Heater and thermocouple redundancy | Prevents production stops from component failure |
| Leak-proof design | Eliminates material leakage that can damage components |
To ensure long-term stability, Shuanghao designs hot runner systems with:
Easy access for cleaning and maintenance
Interchangeable components for quick replacement
Clear documentation for maintenance procedures
Ejection is often overlooked, but it is critical for long-term stability. Poor ejection can cause:
Cap distortion affecting sealing and torque
Mold damage from stuck parts
Uneven wear on ejection components
| Feature | Benefit |
|---|---|
| Optimized ejector pin placement | Balanced force distribution, no cap distortion |
| Sleeve ejectors | Gentle ejection for delicate sealing areas |
| Air-assisted ejection | Break vacuum for sticky or complex cap designs |
| Hardened ejector components | Wear resistance over millions of cycles |
| Precision-ground surfaces | Smooth, consistent movement |
Shuanghao designs ejection systems for easy maintenance:
Accessible ejector pins for inspection and replacement
Standardized components for quick availability
Clear lubrication guidelines for optimal performance
Every Shuanghao cap mold undergoes comprehensive testing before delivery. Our quality assurance system ensures that long-term stability is built in, not hoped for.
| Stage | Activities |
|---|---|
| Design validation | Mold flow analysis, cooling simulation, design review |
| In-process inspection | Dimensional checks at critical manufacturing steps |
| Component inspection | CMM verification of every cavity and core |
| Assembly verification | Mold closure, alignment, and function checks |
| Cooling circuit testing | Flow rate and leak detection |
| Trial runs | Actual cap production to verify performance |
| Final documentation | Quality report, maintenance guidelines, spare parts list |
For multi-cavity molds, we perform:
Weight measurement of caps from every cavity
Dimensional inspection of critical features (threads, sealing surfaces)
Torque testing to verify consistent opening force
Statistical analysis to identify any outliers
Manufacturers using Shuanghao cap molds consistently report exceptional long-term stability.
| Metric | Industry Standard | Shuanghao Performance |
|---|---|---|
| Initial cavity-to-cavity variation | ±0.02mm | ±0.005mm |
| Precision retention after 5M cycles | 50-70% | 80-90% |
| Service life (aluminum molds) | 3-5M cycles | 5-10M cycles |
| Service life (steel molds) | 8-10M cycles | 10-20M cycles |
| Maintenance interval | 500K-1M cycles | 1-2M cycles |
| First-pass yield | 92-95% | 97-99% |
Challenge: A major beverage company needed cap molds that could maintain consistent torque and sealing performance over 10+ million cycles for their high-volume water bottle production.
Shuanghao Solution:
S136 stainless steel molds with 72 cavities
Conformal cooling for uniform thermal management
Valve gate hot runner system
Hardened ejection components
Results:
| Metric | Achievement |
|---|---|
| Service life achieved | 12 million cycles (and still running) |
| Torque variation | <5% over full life |
| Sealing failure rate | <0.1% |
| Maintenance frequency | Every 2 million cycles |
| Customer satisfaction | Excellent; repeat orders placed |
To maximize the life of your Shuanghao cap mold, we recommend:
| Activity | Frequency | Purpose |
|---|---|---|
| Clean venting channels | Every shift | Prevent air trapping, burning |
| Inspect gate tips | Daily | Check for wear, residue |
| Lubricate moving components | Weekly | Reduce wear, ensure smooth operation |
| Check cooling circuit flow | Weekly | Verify adequate cooling |
| Inspect ejector pins | Weekly | Check for wear, damage |
| Activity | Frequency | Purpose |
|---|---|---|
| Full mold cleaning | Every 500K-1M cycles | Remove residue, inspect all components |
| Replace wear components | As needed (typically 1-2M cycles) | Ejector pins, guide bushings, etc. |
| Verify alignment | Every 1M cycles | Check for misalignment, adjust as needed |
| Hot runner inspection | Every 2M cycles | Check heaters, thermocouples, seals |
Shuanghao recommends keeping the following spare parts on hand:
| Part | Quantity | Purpose |
|---|---|---|
| Ejector pins | 10-20% of total | Replace worn pins |
| Gate tips and seals | Per cavity | Critical for consistent filling |
| Heaters and thermocouples | 10% of total | Hot runner maintenance |
| Guide pins and bushings | 1-2 sets | Alignment maintenance |
| Seals and O-rings | Complete set | Cooling circuit maintenance |
At Shuanghao, we believe that a great cap mold is measured not just by its initial precision, but by how long it maintains that precision.
Through our commitment to:
Advanced materials that resist wear and corrosion
Precision manufacturing achieving micron-level accuracy
Optimized cooling for thermal stability
Robust construction that withstands millions of cycles
Rigorous quality control at every stage
We deliver cap molds that provide consistent performance from the first cap to the millionth.
Whether you produce caps for bottled water, carbonated beverages, pharmaceuticals, or industrial applications, Shuanghao has the expertise and technology to deliver molds that last.
Choose Shuanghao. Choose precision that endures.
